DY-HT1 Low Temperature Blackbody Furnace(-30℃-80℃)

The temperature range of the black body temperature calibrator is -30℃~80℃.Blackbody radiation source, mainly used for calibrating radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

The product is small in size, light in weight and easy to carry. It is not only suitable for the use of radiation thermometers in the laboratory calibration of measuring institutions at all levels, but also for on-site calibration.

Inquire Now Next Product

Product Introduction of Blackbody Temperature Calibrator

Black body temperature calibrator in the industry is mainly used in the field of temperature measurement, the main product is black body furnace.

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

Product Feature of Blackbody Radiation Source

1. More portable and lighter.Higher accuracy.

2. Human-machine interface, touch operation.

3. One-key temperature setting, easy to operate.Rapid heating, temperature control.

4. Can copy the language interface of any place in the world according to customers' requirements for export convenience.

5.Novel appearance design, integrated structure of furnace body and temperature control instrument.

6. Isothermal black body cavity, with only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.995, resolution up to 0.1℃.

7. Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.

8. Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.

9. Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

Technical Indicators of Blackbody Radiation Calibration

Model	DY-HT1
Temperature Range	-30℃-80℃
Control Mode	Touch Screen
Temperature Resolution	0.1℃
Temperature Control	PID Automatic Control
Cavity Diameter	Φ40mm(Customizable)
Emissivity	≥0.995
Temperature Stability	Larger than 0.1℃ and 0.1% T (T is the radiation source temperature)
Temperature Uniformity	Larger than ±0.15℃ and 0.15% T (T is the radiation source temperature)
Power Supply	220V AC 50HZ
Power	500W
Dimension	370mm×290mm×370mm
Weight	8.5Kg

Note: other special requirements can be customized according to the needs of users

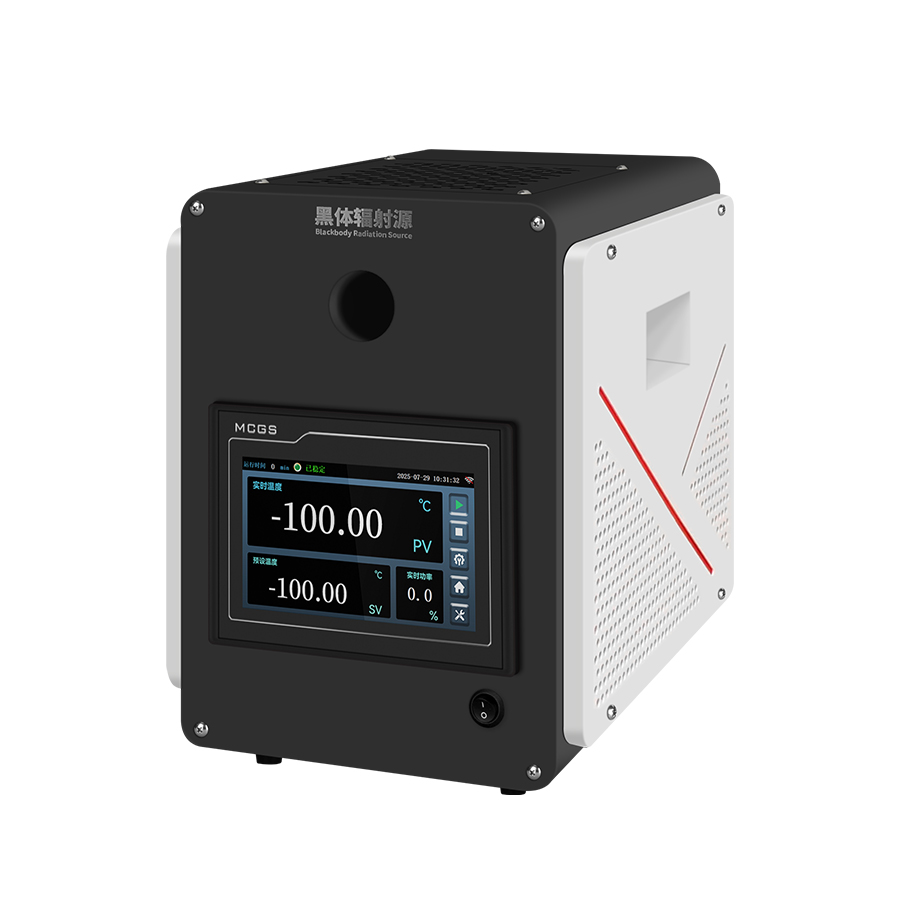

Picture of Blackbody Source
