Low Temperature Dry Block Temperature Calibrator

Home - Products - Dry Block Temperature Calibrator - Low Temperature Dry Block Temperature Calibrator - DY-GTL150X Special Customized Dry Block Temperature Calibrator

  • DY-GTL150X Special Customized Dry Block Temperature Calibrator

  • DY-GTL150X Special Customized Dry Block Temperature Calibrator

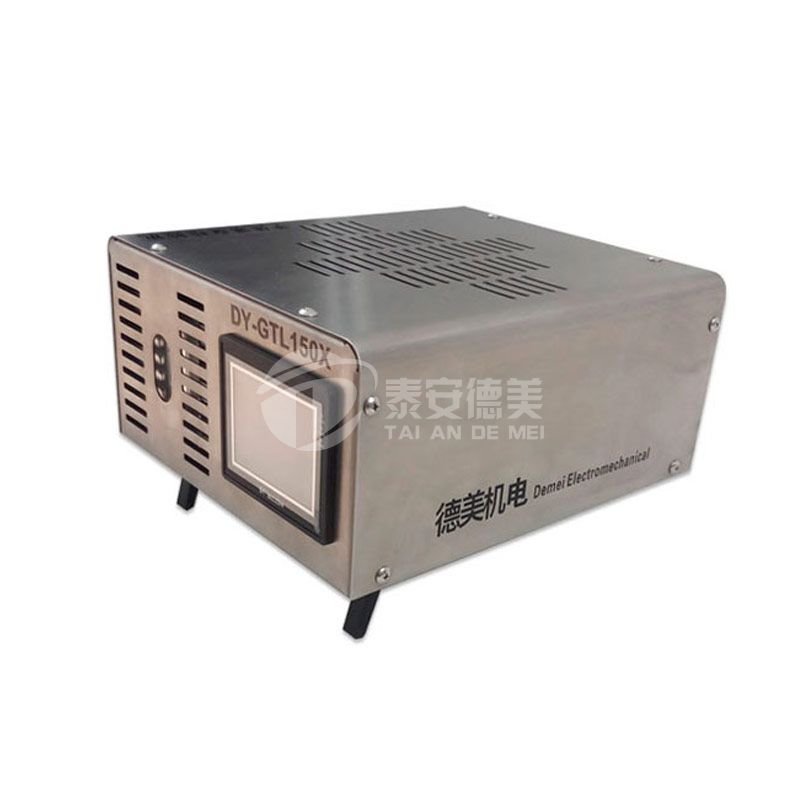

DY-GTL150X Special Customized Dry Block Temperature Calibrator

Dry body furnace is also called dry well, dry well furnace, dry type measuring furnace, temperature measuring furnace, temperature calibration instrument, dry type temperature calibration furnace.

Product Introduction

Dry body furnace is also called dry well, dry well furnace, dry type measuring furnace, temperature measuring furnace, temperature calibration instrument, dry type temperature calibration furnace.

Dry body furnace is a kind of convenient to carry, rise and drop the speed is fast, very traditional field heat source (temperature field), dry body furnace adopts high stability temperature control instrument, the homogenizer adopts the alloy material with good heat conduction.

In terms of technology, it is synchronized with the advanced technology at home and abroad, and in terms of insertion depth, horizontal temperature field, vertical temperature field and other technologies, it is in advanced level.

Used in the required temperature range, is widely used in pharmaceutical (GMP humid heat sterilization, dry heat sterilization), machinery, shipbuilding, chemical, biological products, power plant substation, steel works, measurement testing, scientific research and other industries need on-site calibration temperature.


Product Feature

1. More portable and lighter.Higher accuracy.

2. Human-machine interface, Chinese display, touch operation, beautiful and generous.

3. One-key temperature setting, easy operation, automatic adjustment of heating power.

Rapid heating, temperature control.

4. According to customers' requirements, you can learn the language interface of any place in the world, which is convenient for export.


Technical Indicators
Temperature Range-15℃~125℃
Display Resolution0.1℃
Accuracy±0.25℃
Control ModeTouch Screen
Depth of Checking Hole100mm
Diameter of Heat Block13.3mm
Diameter of Checking Hole3.2mm, 4.7mm, 6.3mm, 9.5mm
Default DisplayEnglish Display full color LCD   ℃ or ℉
Power Supply220V AC 50HZ
Weight5.8Kg
SizeL290mm×W250mm×H150mm
