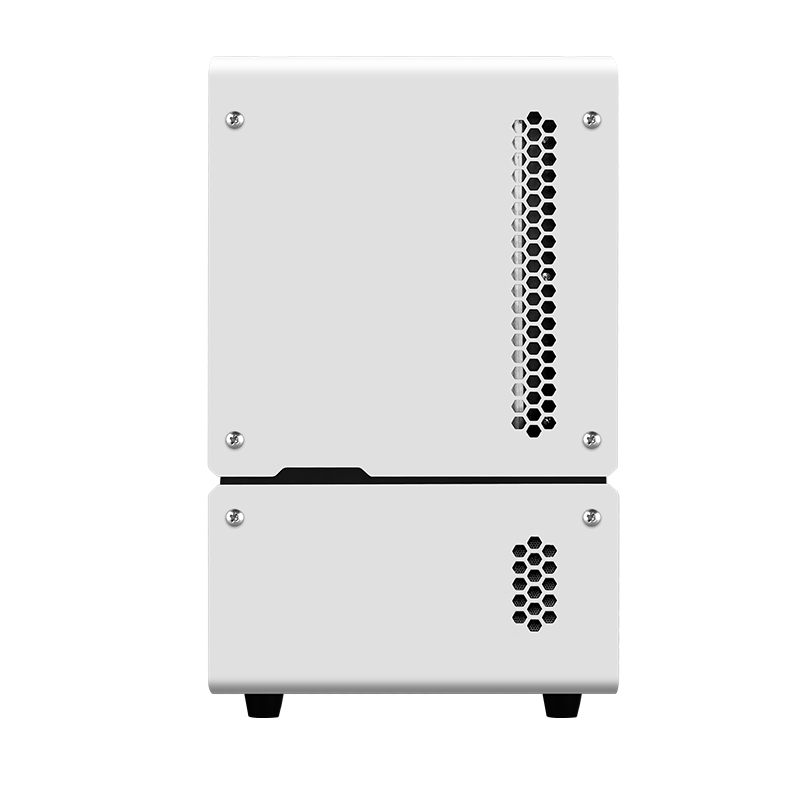

DY-HT2M Non-point Source Blackbody Furnace,Radiating Surface100mm(50-350℃)

The temperature range of the black body temperature calibrator is 50℃~350℃.Blackbody radiation source, mainly used for calibrating radiation thermometers, infrared thermometers and radiation temperature sensing detectors.The product is small in size, light in weight and easy to carry. It is not only suitable for the use of radiation thermometers in the laboratory calibration of measuring institutions at all levels, but also for on-site calibration.

Inquire Now Next Product

Product Introduction of Blackbody Temperature Calibrator

In the calibration and verification of radiation thermometers, the comparative method is usually adopted, that is, through the radiation source of high stability (usually black body radiation source) and other supporting equipment, the temperature reproduced by the standard apparatus and the temperature reproduced by the radiation thermometer are compared, in order to judge whether it is qualified or to give the calibration results.

As a standard radiation source, the standard black body is mainly used to calibrate radiation thermometers, infrared thermometers and radiation temperature sensing detectors.

At present, our company has advanced black body technology, full product range and wide temperature range of black body series products.

Product Feature of Blackbody Radiation Source

1. Novel appearance design, integrated structure of furnace body and temperature control instrument.

2.Heat insulation between the heating body and the shell, special software is used for pressure limiting heating, no high-power power transformer is required.

3. Automatic temperature control is adopted, which is safe and reliable with fast temperature rise and good temperature stability.

4. Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

Technical Indicators of Low Temperature&Medium Temperature Calibrator

Model	DY-HT2M
Temperature Range	50℃~350℃
Control Mode	Touch Screen
Temperature Resolution	0.1℃/0.01
Temperature Control	PID Automatic Control
Radiating Surface	100*100mm(Customizable)
Emissivity	≥0.95
Temperature Stability	Not greater than 0.15℃ and 0.15%T(bigger one in two) T is the radiation source temperature（Within 10min）
Temperature Uniformity	Not greater than ±0.2℃ and 0.2%T(bigger one in two) T is the radiation source temperature（In 2/3 of the central zone）
Power Supply	220V AC 50/60Hz
Current	10A
Wire Line Diameter	≥1.5㎡
Power	800W
Dimension(L×W×H)	325mm×200mm×340mm
Weight	8Kg
Environment	22℃±3℃;15%-65%RH;High 2000m
Optional Features	①Support 232 communication ②Adjustable emissivity（Adjustable between 0.95~0.99）

Note: other special requirements can be customized according to the needs of users

ISO17025 Calibration Certificate of Infrared Temperature Calibration
