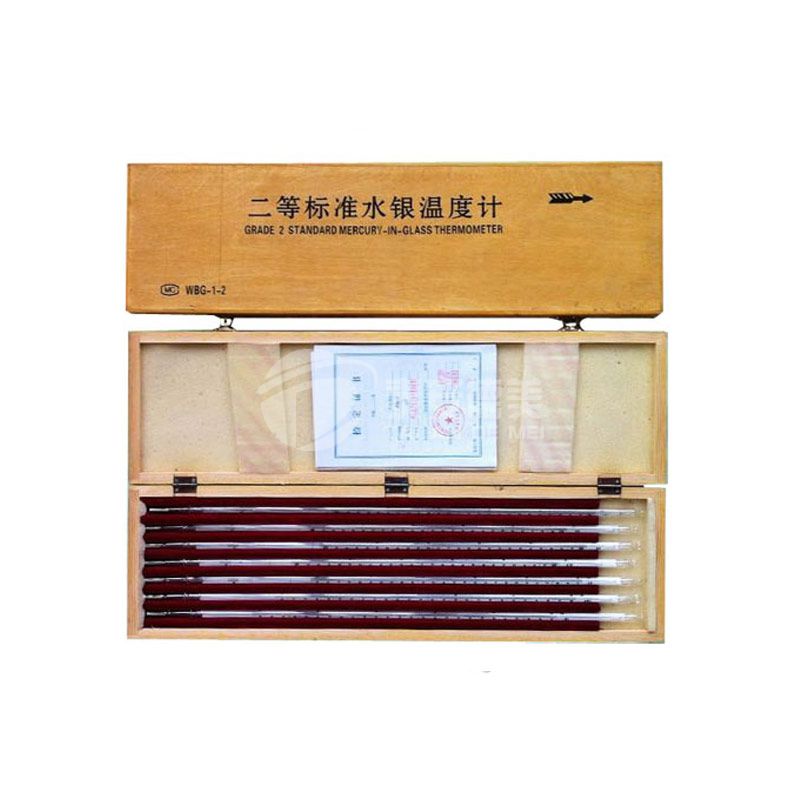

Second-class Standard Mercury Thermometer

The second-class standard mercury thermometer measures the temperature using the principle of thermal expansion and contraction of mercury in the temperature-sensing bubble and capillary.

Inquire Now Next Product

Product Introduction

The second-class standard mercury thermometer measures the temperature using the principle of thermal expansion and contraction of mercury in the temperature-sensing bubble and capillary. Its structure is divided into two types: internal standard and rod type. It is mainly used as a standard for measuring working thermometers. It can also be used for precision temperature measurement. The measurement range is (-30°C～+300°C), and the division value is 0.1°C. With a zero mark.

Technical Indicators

Model	Measuring Range	Graduation value ℃	Shape	Length(mm)	Dip depth
Second-class standard mercury thermometer	-30+20℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	0-50℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	50-100℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	100-150℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	150-200℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	200-250℃	0.1	Internal standard \| rod type	540	Full dip
Second-class standard mercury thermometer	250-300℃	0.1	Internal standard \| rod type	540	Full dip
