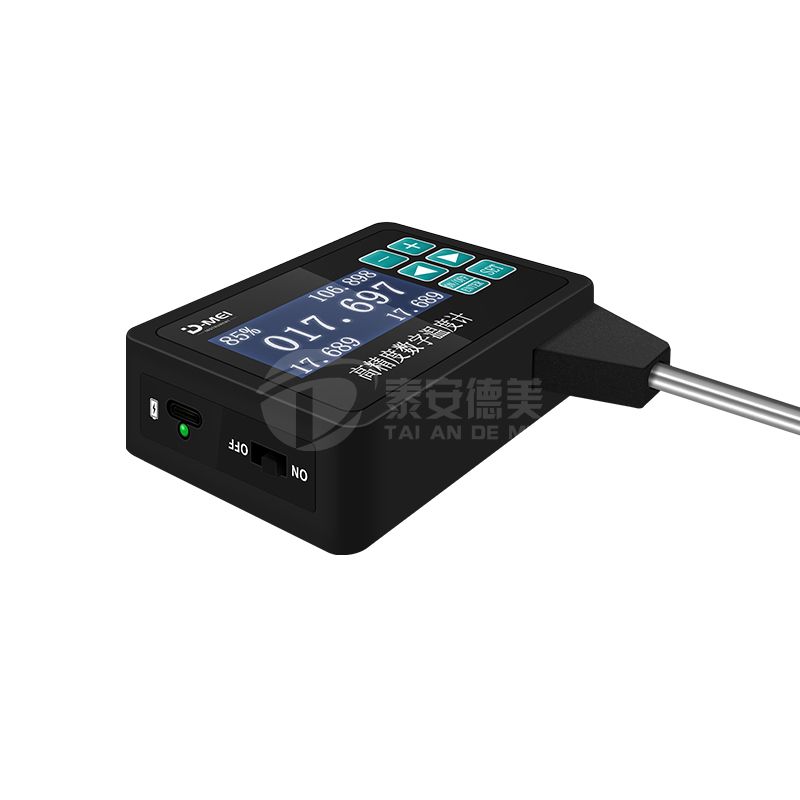

DY-07 Portable High Precision Digital Thermometer

High-precision digital thermometer is a high-precision intelligent temperature instrument developed by Taian Demei Electromechanical Equipment Co., Ltd. Through advanced algorithm design, high-performance temperature sensing elements and electronic components, excellent long-term stability is ensured; the rotating connector allows the display part to rotate 90 degrees for easy observation; it has the advantages of high measurement accuracy, easy use, on-site calibration, safety and environmental protection.

Inquire Now Next Product

Product Introduction

DY-07 is a high-precision intelligent temperature instrument developed by Tai Demei Mechanical and Electrical Equipment Co., Ltd. Through advanced algorithm design, the minimum deviation of contact temperature measurement is achieved; the application of high-performance temperature sensing elements and electronic components ensures excellent long-term stability; the rotating connector allows the display part to rotate 90 degrees for convenient observation; it It has the advantages of high measurement accuracy, easy use, on-site calibration, safety and environmental protection. It is an upgraded product of the second-class standard mercury thermometer, completely avoiding mercury leakage pollution.

Product Feature

Ø Handheld temperature measurement

Ø ØHigh accuracy, 0.02%丨t丨 (t is the measured temperature)

Ø ØHigh resolution, 0.001℃

Ø ØWide measuring range, -50～450℃

Ø ØFast response

Ø ØData retention function

Ø ØThe probe rod can be rotated 90 degrees, suitable for complex industrial site environments

Ø ØEquipped with the upper computer program, multi-point deviation correction can be carried out

Ø ØMicro power consumption, real-time display of current temperature, power display, resistance value, 3-minute temperature fluctuation, 10-minute temperature fluctuation, automatic tracking calculation, and testing functions.

Technical Indicator

Model	DY-07
Resolution	0.001℃
Temperature Range	-20℃~150℃	-80℃~300℃		-50℃~450℃
Sensor	Class A high-precision platinum resistance sensor
Accuracy	±0.05℃		0.02%丨t丨	0.02%丨t丨
Dimension	100mm65mm32mm
Communication	Contains host computer software, which can perform deviation correction, temperature and resistance conversion, and open communication protocol
Running Time	70 hours
Power	2500mA/ 4.2V/ Type-c
Probe Rotation	90℃
Weight	270g
Probe Length	460mm(customizable)
Probe Diameter	5mm
Probe Material	Stain Steel 316L
Medium	Non-conductive gases, liquids, vapors
Functions	Real-time display of current temperature, power display, resistance value, and 3-minute temperature fluctuations Temperature, 10-minute temperature fluctuation automatic tracking calculation and test function
Working Condition	25℃±10℃，＜80%RH
Segment Correction	Users can customize segment corrections for the sensor or use factory default values
