DY-HTX1 Thermal Imaging Infrared Temperature Calibration Equipment(35℃~45℃)

Wireless operation function can be added to enable real-time viewing and operation to solve problems of hoisting and temperature adjustment.

Inquire Now Next Product

Product Feature

1, More portable, more light.More precision.

2, Light weight: the weight of the host is only 1.5 kg.

3, The equipment can be fixed on the mobile bracket, so as to facilitate the use of special industries.

4, Temperature setting, simple operation.Rapid heating, temperature control.

Technical Indicators

Temperature range: 35℃~45℃ （adjustable）

Operating temperature :(35℃, 37℃, 40℃) optional, automatic operation

Radiant surface: 78mm×78mm

Temperature resolution: 0.1℃

Temperature stability: ± (01.-0.2) ℃

Temperature uniformity: ±0.2℃

Emissivity: 0.97±0.02

Factory Emissivity Setting: 0.95

Power supply: 220V AC 50Hz

Dimension/weight: 190mmX110mmX150mm/≤2.0kg

Ambient temperature/humidity: 0℃~30℃ / ≤80%RH

Optional: optional RS485 communication interface

Note: can increase the wireless operation function, real-time view, real-time operation, to solve the problems of hoisting, temperature debugging.

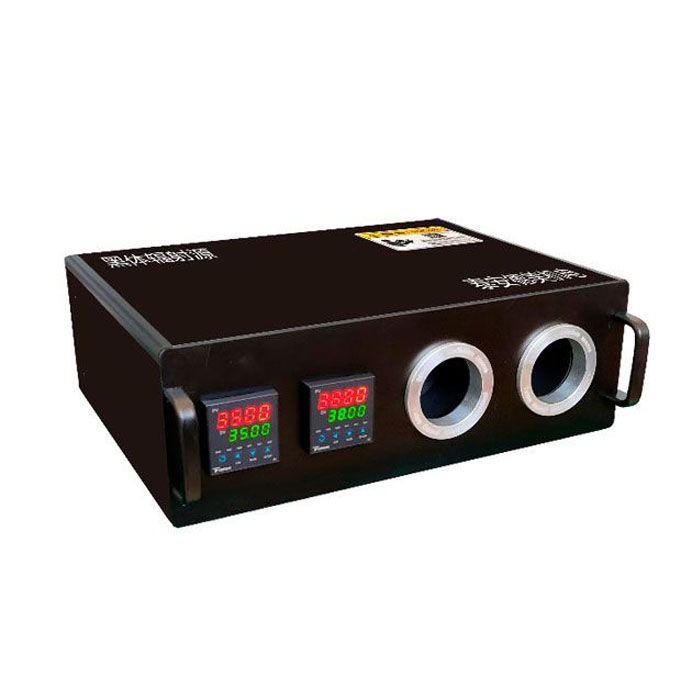

Appearance

DY-HTX1 Thermal Imaging Infrared Temperature Calibration Equipment(35℃~45℃)
