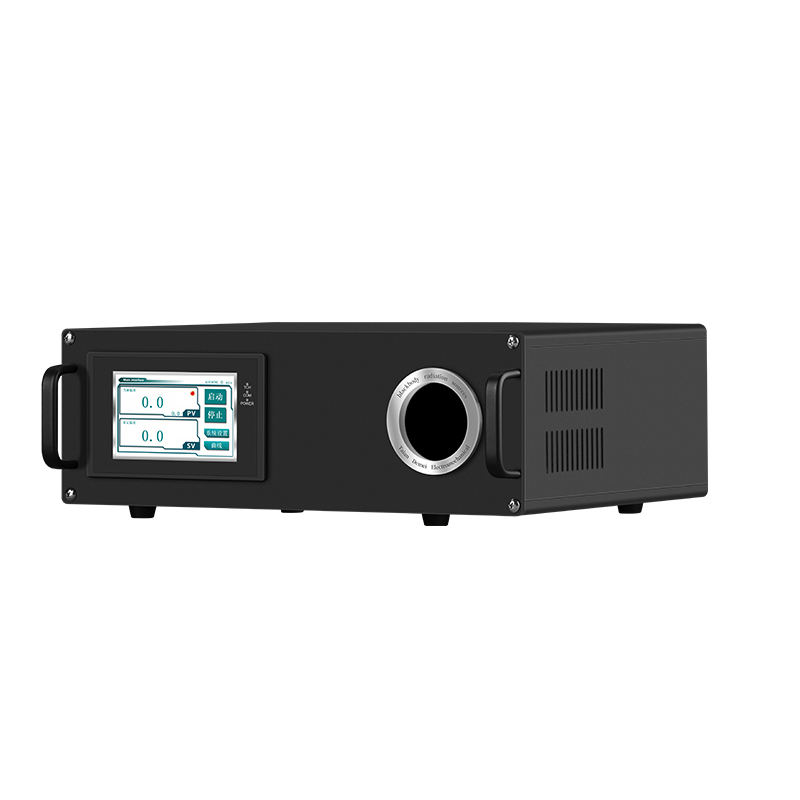

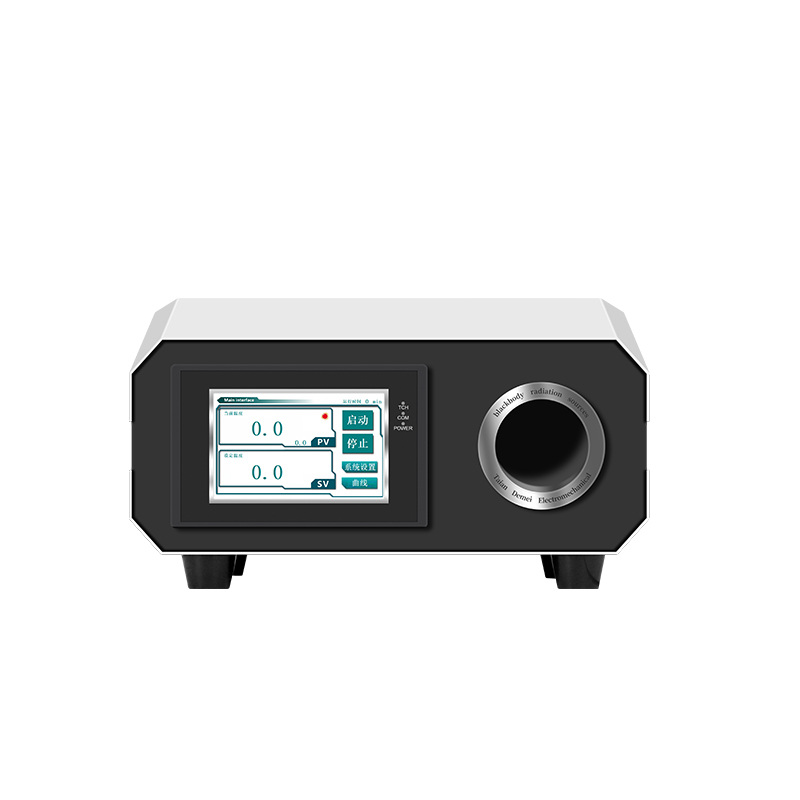

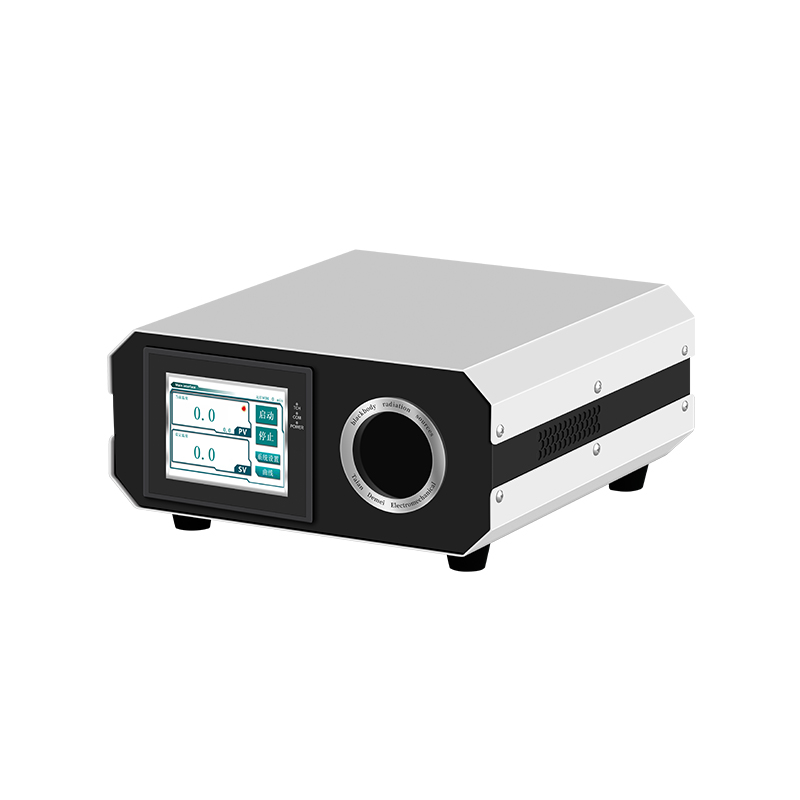

DY-HTY Portable Blackbody Furnace for Temperature Gun(30℃~50℃)

DY-HTY portable blackbody furnace for body temperature (30℃~45℃) is independently developed and produced by our company. It is mainly used for the calibration of infrared ear temperature and infrared forehead temperature. It can also be used for the calibration of infrared body surface screening instruments.

Inquire Now Next Product

Product Introduction

The portable infrared body temperature blackbody furnace uses a temperature circulation system developed by our company and new materials developed by our company. Its emissivity can reach above 0.99, making it an ideal product for calibrating infrared ear and forehead temperatures.

Product Feature

1. Novel appearance design, touch screen operation, simple operation.

2. Isothermal black body cavity, only one cavity mouth, cavity mouth radiation evenly distributed along with the spectrum, cavity mouth emissivity above 0.99.

3. Adopt automatic temperature control, safe and reliable, fast temperature rise and good temperature stability.

4. Easy to operate, small in size and light in weight, easy to carry, suitable not only for laboratory calibration, but also for on-site calibration.

5. New technologies, such as double-row digital display of measured values and parameter setting of set values, are featured by high precision, multi-function and strong anti-interference ability.

Technical Indicators

Model	DY-HTY1	DY-HTY3
Chamber style	Short cavity plane type	Deep cavity cone type
Temperature Range	30℃~45℃ (Customizable)	30℃~45℃ (Customizable)
Control Mode	Touch Screen	Touch Screen
Temperature Resolution	0.1℃	0.01℃
Cavity Diameter	φ50mm	φ50mm
Deep cavity	50mm	180mm
Emissivity	≥0.99	≥0.998
Temperature Stability	±0.2℃/10min	±0.15℃/10min
Temperature Uniformity	±0.2℃	±0.15℃
Power Supply	220V AC 50HZ 100W	220V AC 50HZ 100W
Weight	4.0Kg	4.0Kg
Dimension(L×W×H)	225mm×225mm×115mm

Operating Interface
